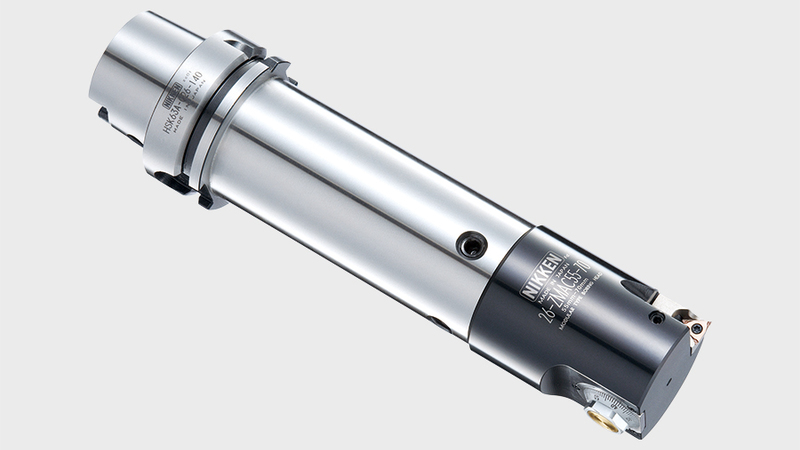

La gamme d'alésage modulaire ZMAC ADVANCED de NIKKEN offre des performances hautes et précises pour tout processus de finition et semi-finition.

Disponible avec plaquettes exclusives NIKKEN. Nous avons deux solutions distinctes pour répondre à toutes les exigences :

  • NIKKEN MP/MS - Géométrie de plaquette en triangulaires pour la finition.
  • NIKKEN CC - Géométrie de plaquette en rhomboïdales pour la semi-finition.

Si vous souhaitez choisir une plaquette générique, vous pouvez également choisir notre option NIKKEN ZMAC ISO ADVANCED à cartouches pour s'adapter à des choix de plaquette plus standard, selon vos besoins.

La solution ZMAC est notre principale solution pour l'alésage précis- Notre cartouche d'alésage, contrairement aux solutions concurrentes, comporte un support en contact parfait, conçu pour soutenir entièrement la plaquette sur toute la plage de sa course.

La vis de blocage se situe précisément à 90 degrés de la vis de réglage afin d’éliminer toute possibilité de déflexion et de prérégler la variation des mesures.

Le ZMAC a une cadran micronique gradué avec précision qui comporte un filetage rectifié à pas fins qui est spécialement traité à HV800. Celui-ci est accouplé à un filetage de cartouche rectifié avec précision qui est également trempé et traité HRC50-55.

La solution est livrée en standard avec une alimentation en liquide de refroidissement par le centre qui amène le liquide de refroidissement à travers le mandrin, les éventuelles entretoises et la tête ZMAC directement au-dessus de la plaquette de coupe pour un refroidissement optimal même dans un alésage étroit.

Pour réduire le poids de l’ensemble et opérer à une vitesse plus rapide, nous fournissons notre Tête ZMAC Alpha. Elle est construite en alliage léger et dispose d'un système d'équilibrage interne pour contrer les vibrations.

Nos têtes d'alésage modulaires standard ZMAC et ZMAC Alpha (à partir de ZMAC25) sont disponibles en 10 tailles :

  • ZMAC16 - du diamètre 15,9 mm à 20,2 mm.
  • ZMAC20 - du diamètre 19,8 mm à 25,2 mm.
  • ZMAC25 - du diamètre 24,8 mm à 32,2 mm.
  • ZMAC32 - du diamètre 31,8 mm à 42,2 mm.
  • ZMAC42 - du diamètre 41,8 mm à 55,2 mm.
  • ZMAC55 - du diamètre 54,8 mm à 70,2 mm.
  • ZMAC70 - du diamètre 69,8 mm à 85,2 mm.
  • ZMAC85 - du diamètre 84,8 mm à 100,2 mm.
  • ZMAC100 - du diamètre 99,5 mm à 140,5 mm.
  • ZMAC140 - du diamètre 139,5 mm à 180,5 mm.

  • Haute pression avec réglage micrométrique

  • Alliage léger disponible pour plus grandes vitesses

  • Support à double contact unique

CATALOGUE DES SOLUTIONS D’OUTILS À COMMANDE NUMÉRIQUE NIKKEN

(PDF - 36.2 MB)

BROCHURE ALÉSAGE

(PDF - 70.4 MB)

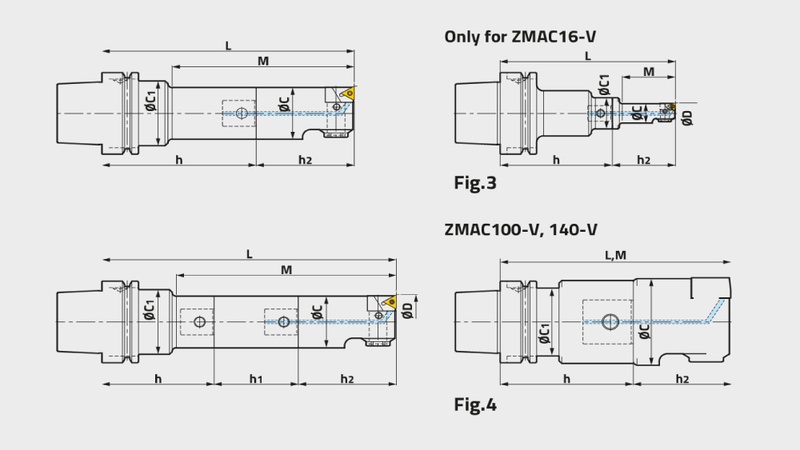

Tailles et capacités disponibles

QUEUE CONE DE BASE ENTRETOISE / RALLONGE TETE/ CARTOUCHE / PLAQUETTE DIAMÈTRE MIN. « D » DIAM. « D » MAX PROFONDEUR D’ALÉSAGE « H » INSERT Application
BT40-Q12-110 + ~ + 12-ZMAC25-40AAV BT40 BT40-Q12-110 ~ 12-ZMAC25-40AAV 24.8 32.2 90.0 3MP High speeds / deep hole drilling
BT40-Q12-110 + ~ + 12-ZMAC25-40V BT40 BT40-Q12-110 ~ 12-ZMAC25-40V 24.8 32.2 90.0 3MP Finishing
BT40-Q12-80 + ~ + 12-ZMAC16-45AAV BT40 BT40-Q12-80 ~ 12-ZMAC16-45AAV 15.9 20.2 38.0 3MP High speeds / deep hole grinding
BT40-Q12-80 + ~ + 12-ZMAC16-45V BT40 BT40-Q12-80 ~ 12-ZMAC16-45V 15.9 20.2 38.0 3MP High speeds / deep hole grinding
BT40-Q12-80 + ~ + 12-ZMAC16-55AAV BT40 BT40-Q12-80 ~ 12-ZMAC16-55AAV 15.9 20.2 48.0 3MP High speeds / deep hole grinding
BT40-Q12-80 + ~ + 12-ZMAC16-55V BT40 BT40-Q12-80 ~ 12-ZMAC16-55V 15.9 20.2 48.0 3MP High speeds / deep hole grinding
BT40-Q12-80 + ~ + 12-ZMAC25-40AAV BT40 BT40-Q12-80 ~ 12-ZMAC25-40AAV 24.8 32.2 52.0 3MP High speeds / deep hole grinding
BT40-Q12-80 + ~ + 12-ZMAC25-40V BT40 BT40-Q12-80 ~ 12-ZMAC25-40V 24.8 32.2 52.0 3MP Finishing
BT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40AAV BT40 BT40-Q12-80 SP12-12-45 12-ZMAC25-40AAV 24.8 32.2 97.0 3MP High speeds / deep hole grinding
BT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40V BT40 BT40-Q12-80 SP12-12-45 12-ZMAC25-40V 24.8 32.2 97.0 3MP Finishing
BT40-Q16-125 + ~ + 16-ZMAC32-55AAV BT40 BT40-Q16-125 ~ 16-ZMAC32-55AAV 31.8 42.2 110.0 4MP High speeds / deep hole grinding
BT40-Q16-125 + ~ + 16-ZMAC32-55V BT40 BT40-Q16-125 ~ 16-ZMAC32-55V 31.8 42.2 110.0 4MP Finishing
BT40-Q16-125 + ~ + 16-ZMAC32R-55AAV BT40 BT40-Q16-125 ~ 16-ZMAC32R-55AAV 31.8 42.2 110.0 CC06 High speeds / deep hole drilling
BT40-Q16-125 + ~ + 16-ZMAC32R-55V BT40 BT40-Q16-125 ~ 16-ZMAC32R-55V 31.8 42.2 110.0 CC06 Finishing
BT40-Q16-95 + ~ + 16-ZMAC32-55AAV BT40 BT40-Q16-95 ~ 16-ZMAC32-55AAV 31.8 42.2 77.0 4MP High speeds / deep hole drilling
BT40-Q16-95 + ~ + 16-ZMAC32-55V BT40 BT40-Q16-95 ~ 16-ZMAC32-55V 31.8 42.2 77.0 4MP Finishing
BT40-Q16-95 + ~ + 16-ZMAC32R-55AAV BT40 BT40-Q16-95 ~ 16-ZMAC32R-55AAV 31.8 42.2 77.0 CC06 High speeds / deep hole drilling
BT40-Q16-95 + ~ + 16-ZMAC32R-55V BT40 BT40-Q16-95 ~ 16-ZMAC32R-55V 31.8 42.2 77.0 CC06 Finishing
BT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55AAV BT40 BT40-Q16-95 SP16-16-45 16-ZMAC32-55AAV 31.8 42.2 122.0 4MP High speeds / deep hole drilling
BT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55V BT40 BT40-Q16-95 SP16-16-45 16-ZMAC32-55V 31.8 42.2 122.0 4MP Finishing
BT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55AAV BT40 BT40-Q16-95 SP16-16-45 16-ZMAC32R-55AAV 31.8 42.2 122.0 CC06 High speeds / deep hole drilling
BT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55V BT40 BT40-Q16-95 SP16-16-45 16-ZMAC32R-55V 31.8 42.2 122.0 CC06 Finishing
BT40-Q20-110 + ~ + 20-ZMAC42-70AAV BT40 BT40-Q20-110 ~ 20-ZMAC42-70AAV 41.8 55.2 130.0 6MP High speeds / deep hole drilling
BT40-Q20-110 + ~ + 20-ZMAC42-70V BT40 BT40-Q20-110 ~ 20-ZMAC42-70V 41.8 55.2 130.0 6MP Finishing
BT40-Q20-110 + ~ + 20-ZMAC42R-70AAV BT40 BT40-Q20-110 ~ 20-ZMAC42R-70AAV 41.8 55.2 130.0 CC06 High speeds / deep hole drilling
BT40-Q20-110 + ~ + 20-ZMAC42R-70V BT40 BT40-Q20-110 ~ 20-ZMAC42R-70V 41.8 55.2 130.0 CC06 Finishing
BT40-Q20-80 + ~ + 20-ZMAC42-70AAV BT40 BT40-Q20-80 ~ 20-ZMAC42-70AAV 41.8 55.2 97.0 6MP High speeds / deep hole drilling
BT40-Q20-80 + ~ + 20-ZMAC42-70V BT40 BT40-Q20-80 ~ 20-ZMAC42-70V 41.8 55.2 97.0 6MP Finishing
BT40-Q20-80 + ~ + 20-ZMAC42R-70AAV BT40 BT40-Q20-80 ~ 20-ZMAC42R-70AAV 41.8 55.2 97.0 CC06 High speeds / deep hole drilling
BT40-Q20-80 + ~ + 20-ZMAC42R-70V BT40 BT40-Q20-80 ~ 20-ZMAC42R-70V 41.8 55.2 97.0 CC06 Finishing
BT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70AAV BT40 BT40-Q20-80 SP20-20-60 20-ZMAC42-70AAV 41.8 55.2 157.0 6MP High speeds / deep hole drilling
BT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70V BT40 BT40-Q20-80 SP20-20-60 20-ZMAC42-70V 41.8 55.2 157.0 6MP Finishing
BT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70AAV BT40 BT40-Q20-80 SP20-20-60 20-ZMAC42R-70AAV 41.8 55.2 157.0 CC06 High speeds / deep hole drilling
BT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70V BT40 BT40-Q20-80 SP20-20-60 20-ZMAC42R-70V 41.8 55.2 157.0 CC06 Finishing
BT40-Q26-140 + ~ + 26-ZMAC55-70AAV BT40 BT40-Q26-140 ~ 26-ZMAC55-70AAV 54.8 70.2 180.0 6MP High speeds / deep hole drilling
BT40-Q26-140 + ~ + 26-ZMAC55-70V BT40 BT40-Q26-140 ~ 26-ZMAC55-70V 54.8 70.2 180.0 6MP Finishing
BT40-Q26-140 + ~ + 26-ZMAC55R-70AAV BT40 BT40-Q26-140 ~ 26-ZMAC55R-70AAV 54.8 70.2 180.0 CC06 High speeds / deep hole drilling
BT40-Q26-140 + ~ + 26-ZMAC55R-70V BT40 BT40-Q26-140 ~ 26-ZMAC55R-70V 54.8 70.2 180.0 CC06 Finishing
BT40-Q26-95 + ~ + 26-ZMAC55-70AAV BT40 BT40-Q26-95 ~ 26-ZMAC55-70AAV 54.8 70.2 135.0 6MP High speeds / deep hole drilling
BT40-Q26-95 + ~ + 26-ZMAC55-70V BT40 BT40-Q26-95 ~ 26-ZMAC55-70V 54.8 70.2 135.0 6MP Finishing
BT40-Q26-95 + ~ + 26-ZMAC55R-70AAV BT40 BT40-Q26-95 ~ 26-ZMAC55R-70AAV 54.8 70.2 135.0 CC06 High speeds / deep hole drilling
BT40-Q26-95 + ~ + 26-ZMAC55R-70V BT40 BT40-Q26-95 ~ 26-ZMAC55R-70V 54.8 70.2 135.0 CC06 Finishing
BT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70AAV BT40 BT40-Q26-95 SP26-26-60 26-ZMAC55-70AAV 54.8 70.2 195.0 6MP High speeds / deep hole drilling
BT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70V BT40 BT40-Q26-95 SP26-26-60 26-ZMAC55-70V 54.8 70.2 195.0 6MP Finishing
BT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70AAV BT40 BT40-Q26-95 SP26-26-60 26-ZMAC55R-70AAV 54.8 70.2 195.0 CC06 High speeds / deep hole drilling
BT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70V BT40 BT40-Q26-95 SP26-26-60 26-ZMAC55R-70V 54.8 70.2 195.0 CC06 Finishing
BT40-Q34-110 + ~ + 34-ZMAC70-70AAV BT40 BT40-Q34-110 ~ 34-ZMAC70-70AAV 69.8 85.2 180.0 6MP High speeds / deep hole drilling
BT40-Q34-110 + ~ + 34-ZMAC70-70V BT40 BT40-Q34-110 ~ 34-ZMAC70-70V 69.8 85.2 180.0 6MP Finishing
BT40-Q34-110 + ~ + 34-ZMAC70R-70AAV BT40 BT40-Q34-110 ~ 34-ZMAC70R-70AAV 69.8 85.2 180.0 CC08 High speeds / deep hole drilling
BT40-Q34-110 + ~ + 34-ZMAC70R-70V BT40 BT40-Q34-110 ~ 34-ZMAC70R-70V 69.8 85.2 180.0 CC08 Finishing
BT40-Q34-95 + ~ + 34-ZMAC70-70AAV BT40 BT40-Q34-95 ~ 34-ZMAC70-70AAV 69.8 85.2 165.0 6MP High speeds / deep hole drilling
BT40-Q34-95 + ~ + 34-ZMAC70-70V BT40 BT40-Q34-95 ~ 34-ZMAC70-70V 69.8 85.2 165.0 6MP Finishing
BT40-Q34-95 + ~ + 34-ZMAC70R-70AAV BT40 BT40-Q34-95 ~ 34-ZMAC70R-70AAV 69.8 85.2 165.0 CC08 High speeds / deep hole drilling
BT40-Q34-95 + ~ + 34-ZMAC70R-70V BT40 BT40-Q34-95 ~ 34-ZMAC70R-70V 69.8 85.2 165.0 CC08 Finishing
BT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70AAV BT40 BT40-Q34-95 SP34-34-95 34-ZMAC70-70AAV 69.8 85.2 225.0 6MP High speeds / deep hole drilling
BT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70V BT40 BT40-Q34-95 SP34-34-95 34-ZMAC70-70V 69.8 85.2 225.0 6MP Finishing
BT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70AAV BT40 BT40-Q34-95 SP34-34-95 34-ZMAC70R-70AAV 69.8 85.2 225.0 CC08 High speeds / deep hole drilling
BT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70V BT40 BT40-Q34-95 SP34-34-95 34-ZMAC70R-70V 69.8 85.2 225.0 CC08 Finishing
BT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100AAV BT50 BT40-Q42-125 SP42-42-90 42-ZMAC85-100AAV 84.8 100.2 272.0 6MP High speeds / deep hole drilling
BT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100V BT50 BT40-Q42-125 SP42-42-90 42-ZMAC85-100V 84.8 100.2 272.0 6MP Finishing
BT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100AAV BT40 BT40-Q42-125 SP42-42-90 42-ZMAC85R-100AAV 84.8 100.2 272.0 CC08 High speeds / deep hole drilling
BT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100V BT40 BT40-Q42-125 SP42-42-90 42-ZMAC85R-100V 84.8 100.2 272.0 CC08 Finishing
BT40-Q42-95 + ~ + 42-ZMAC85-100AAV BT40 BT40-Q42-95 ~ 42-ZMAC85-100AAV 84.8 100.2 195.0 6MP High speeds / deep hole drilling
BT40-Q42-95 + ~ + 42-ZMAC85-100V BT40 BT40-Q42-95 ~ 42-ZMAC85-100V 84.8 100.2 195.0 6MP Finishing
BT40-Q42-95 + ~ + 42-ZMAC85R-100AAV BT40 BT40-Q42-95 ~ 42-ZMAC85R-100AAV 84.8 100.2 195.0 CC08 High speeds / deep hole drilling
BT40-Q42-95 + ~ + 42-ZMAC85R-100V BT40 BT40-Q42-95 ~ 42-ZMAC85R-100V 84.8 100.2 195.0 CC08 Finishing
BT40-Q9-80 + ~ + 9-ZMAC20-40AAV BT40 BT40-Q9-80 ~ 9-ZMAC20-40AAV 19.8 25.2 45.0 3MP High speeds / deep hole drilling
BT40-Q9-80 + ~ + 9-ZMAC20-40V BT40 BT40-Q9-80 ~ 9-ZMAC20-40V 19.8 25.2 45.0 3MP Finishing
BT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40AAV BT40 BT40-Q9-80 SP9-9-30 9-ZMAC20-40AAV 19.8 25.2 75.0 3MP High speeds / deep hole drilling
BT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40V BT40 BT40-Q9-80 SP9-9-30 9-ZMAC20-40V 19.8 25.2 75.0 3MP Finishing
BT40-Q9-95N + ~ + 9-ZMAC20-40AAV BT40 BT40-Q9-95N ~ 9-ZMAC20-40AAV 19.8 25.2 67.0 3MP High speeds / deep hole drilling
BT40-Q9-95N + ~ + 9-ZMAC20-40V BT40 BT40-Q9-95N ~ 9-ZMAC20-40V 19.8 25.2 67.0 3MP Finishing
BT50-Q12-125 + ~ + 12-ZMAC25-40AAV BT50 BT50-Q12-125 ~ 12-ZMAC25-40AAV 24.8 32.2 90.0 3MP High speeds / deep hole drilling
BT50-Q12-125 + ~ + 12-ZMAC25-40V BT50 BT50-Q12-125 ~ 12-ZMAC25-40V 24.8 32.2 90.0 3MP Finishing
BT50-Q12-95 + ~ + 12-ZMAC16-45AAV BT50 BT50-Q12-95 ~ 12-ZMAC16-45AAV 15.9 20.2 38.0 3MP High speeds / deep hole drilling
BT50-Q12-95 + ~ + 12-ZMAC16-45V BT50 BT50-Q12-95 ~ 12-ZMAC16-45V 15.9 20.2 38.0 3MP Finishing
BT50-Q12-95 + ~ + 12-ZMAC16-55AAV BT50 BT50-Q12-95 ~ 12-ZMAC16-55AAV 15.9 20.2 48.0 3MP High speeds / deep hole drilling
BT50-Q12-95 + ~ + 12-ZMAC16-55V BT50 BT50-Q12-95 ~ 12-ZMAC16-55V 15.9 20.2 48.0 3MP Finishing
BT50-Q12-95 + ~ + 12-ZMAC25-40AAV BT50 BT50-Q12-95 ~ 12-ZMAC25-40AAV 24.8 32.2 52.0 3MP High speeds / deep hole drilling
BT50-Q12-95 + ~ + 12-ZMAC25-40V BT50 BT50-Q12-95 ~ 12-ZMAC25-40V 24.8 32.2 52.0 3MP Finishing
BT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40AAV BT50 BT50-Q12-95 SP12-12-45 12-ZMAC25-40AAV 24.8 32.2 97.0 3MP High speeds / deep hole drilling
BT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40V BT50 BT50-Q12-95 SP12-12-45 12-ZMAC25-40V 24.8 32.2 97.0 3MP Finishing
BT50-Q16-125N + ~ + 16-ZMAC32-55AAV BT50 BT50-Q16-125N ~ 16-ZMAC32-55AAV 31.8 42.2 77.0 4MP High speeds / deep hole drilling
BT50-Q16-125N + ~ + 16-ZMAC32-55V BT50 BT50-Q16-125N ~ 16-ZMAC32-55V 31.8 42.2 77.0 4MP Finishing
BT50-Q16-125N + ~ + 16-ZMAC32R-55AAV BT50 BT50-Q16-125N ~ 16-ZMAC32R-55AAV 31.8 42.2 77.0 CC06 High speeds / deep hole drilling
BT50-Q16-125N + ~ + 16-ZMAC32R-55V BT50 BT50-Q16-125N ~ 16-ZMAC32R-55V 31.8 42.2 77.0 CC06 Finishing
BT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55AAV BT50 BT50-Q16-125N SP16-16-45 16-ZMAC32-55AAV 31.8 42.2 122.0 4MP High speeds / deep hole drilling
BT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55V BT50 BT50-Q16-125N SP16-16-45 16-ZMAC32-55V 31.8 42.2 122.0 4MP Finishing
BT50-Q16-125N + SP16-16-45 + 16-ZMAC32R-55AAV BT50 BT50-Q16-125N SP16-16-45 16-ZMAC32R-55AAV 31.8 42.2 122.0 CC06 High speeds / deep hole drilling
BT50-Q16-125N + SP16-16-45 + 16-ZMAC32R-55V BT50 BT50-Q16-125N SP16-16-45 16-ZMAC32R-55V 31.8 42.2 122.0 CC06 Finishing
BT50-Q16-155 + ~ + 16-ZMAC32-55AAV BT50 BT50-Q16-155 ~ 16-ZMAC32-55AAV 31.8 42.2 110.0 4MP High speeds / deep hole drilling
BT50-Q16-155 + ~ + 16-ZMAC32-55V BT50 BT50-Q16-155 ~ 16-ZMAC32-55V 31.8 42.2 110.0 4MP Finishing
BT50-Q16-155 + ~ + 16-ZMAC32R-55AAV BT50 BT50-Q16-155 ~ 16-ZMAC32R-55AAV 31.8 42.2 110.0 CC06 High speeds / deep hole drilling
BT50-Q16-155 + ~ + 16-ZMAC32R-55V BT50 BT50-Q16-155 ~ 16-ZMAC32R-55V 31.8 42.2 110.0 CC06 Finishing
BT50-Q20-110 + ~ + 20-ZMAC42-70AAV BT50 BT50-Q20-110 ~ 20-ZMAC42-70AAV 41.8 55.2 97.0 6MP High speeds / deep hole drilling
BT50-Q20-110 + ~ + 20-ZMAC42-70V BT50 BT50-Q20-110 ~ 20-ZMAC42-70V 41.8 55.2 97.0 6MP Finishing
BT50-Q20-110 + ~ + 20-ZMAC42R-70AAV BT50 BT50-Q20-110 ~ 20-ZMAC42R-70AAV 41.8 55.2 97.0 CC06 High speeds / deep hole drilling
BT50-Q20-110 + ~ + 20-ZMAC42R-70V BT50 BT50-Q20-110 ~ 20-ZMAC42R-70V 41.8 55.2 97.0 CC06 Finishing
BT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70AAV BT50 BT50-Q20-110 SP20-20-45 20-ZMAC42-70AAV 41.8 55.2 142.0 6MP High speeds / deep hole drilling
BT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70V BT50 BT50-Q20-110 SP20-20-45 20-ZMAC42-70V 41.8 55.2 142.0 6MP Finishing
BT50-Q20-110 + SP20-20-45 + 20-ZMAC42R-70AAV BT50 BT50-Q20-110 SP20-20-45 20-ZMAC42R-70AAV 41.8 55.2 142.0 CC06 High speeds / deep hole drilling
BT50-Q20-110 + SP20-20-45 + 20-ZMAC42R-70V BT50 BT50-Q20-110 SP20-20-45 20-ZMAC42R-70V 41.8 55.2 142.0 CC06 Finishing
BT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70AAV BT50 BT50-Q20-110 SP20-20-60 20-ZMAC42-70AAV 41.8 55.2 157.0 6MP High speeds / deep hole drilling
BT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70V BT50 BT50-Q20-110 SP20-20-60 20-ZMAC42-70V 41.8 55.2 157.0 6MP Finishing
BT50-Q20-110 + SP20-20-60 + 20-ZMAC42R-70AAV BT50 BT50-Q20-110 SP20-20-60 20-ZMAC42R-70AAV 41.8 55.2 157.0 CC06 High speeds / deep hole drilling
BT50-Q20-110 + SP20-20-60 + 20-ZMAC42R-70V BT50 BT50-Q20-110 SP20-20-60 20-ZMAC42R-70V 41.8 55.2 157.0 CC06 Finishing
BT50-Q20-125 + ~ + 20-ZMAC42-70AAV BT50 BT50-Q20-125 ~ 20-ZMAC42-70AAV 41.8 55.2 130.0 6MP High speeds / deep hole drilling
BT50-Q20-125 + ~ + 20-ZMAC42-70V BT50 BT50-Q20-125 ~ 20-ZMAC42-70V 41.8 55.2 130.0 6MP Finishing
BT50-Q20-125 + ~ + 20-ZMAC42R-70AAV BT50 BT50-Q20-125 ~ 20-ZMAC42R-70AAV 41.8 55.2 130.0 CC06 High speeds / deep hole drilling
BT50-Q20-125 + ~ + 20-ZMAC42R-70V BT50 BT50-Q20-125 ~ 20-ZMAC42R-70V 41.8 55.2 130.0 CC06 Finishing
BT50-Q26-140 + ~ + 26-ZMAC55-70AAV BT50 BT50-Q26-140 ~ 26-ZMAC55-70AAV 54.8 70.2 117.0 6MP High speeds / deep hole drilling
BT50-Q26-140 + ~ + 26-ZMAC55-70V BT50 BT50-Q26-140 ~ 26-ZMAC55-70V 54.8 70.2 117.0 6MP Finishing
BT50-Q26-140 + ~ + 26-ZMAC55R-70AAV BT50 BT50-Q26-140 ~ 26-ZMAC55R-70AAV 54.8 70.2 117.0 CC06 High speeds / deep hole drilling
BT50-Q26-140 + ~ + 26-ZMAC55R-70V BT50 BT50-Q26-140 ~ 26-ZMAC55R-70V 54.8 70.2 117.0 CC06 Finishing
BT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70AAV BT50 BT50-Q26-140 SP26-26-60 26-ZMAC55-70AAV 54.8 70.2 177.0 6MP High speeds / deep hole drilling
BT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70V BT50 BT50-Q26-140 SP26-26-60 26-ZMAC55-70V 54.8 70.2 177.0 6MP Finishing
BT50-Q26-140 + SP26-26-60 + 26-ZMAC55R-70AAV BT50 BT50-Q26-140 SP26-26-60 26-ZMAC55R-70AAV 54.8 70.2 177.0 CC06 High speeds / deep hole drilling
BT50-Q26-140 + SP26-26-60 + 26-ZMAC55R-70V BT50 BT50-Q26-140 SP26-26-60 26-ZMAC55R-70V 54.8 70.2 177.0 CC06 Finishing
BT50-Q26-170N + ~ + 26-ZMAC55-70AAV BT50 BT50-Q26-170N ~ 26-ZMAC55-70AAV 54.8 70.2 182.0 6MP High speeds / deep hole drilling
BT50-Q26-170N + ~ + 26-ZMAC55-70V BT50 BT50-Q26-170N ~ 26-ZMAC55-70V 54.8 70.2 182.0 6MP Finishing
BT50-Q26-170N + ~ + 26-ZMAC55R-70AAV BT50 BT50-Q26-170N ~ 26-ZMAC55R-70AAV 54.8 70.2 182.0 CC06 High speeds / deep hole drilling
BT50-Q26-170N + ~ + 26-ZMAC55R-70V BT50 BT50-Q26-170N ~ 26-ZMAC55R-70V 54.8 70.2 182.0 CC06 Finishing
BT50-Q34-170 + ~ + 34-ZMAC70-70AAV BT50 BT50-Q34-170 ~ 34-ZMAC70-70AAV 69.8 85.2 190.0 6MP High speeds / deep hole drilling
BT50-Q34-170 + ~ + 34-ZMAC70-70V BT50 BT50-Q34-170 ~ 34-ZMAC70-70V 69.8 85.2 190.0 6MP Finishing
BT50-Q34-170 + ~ + 34-ZMAC70R-70AAV BT50 BT50-Q34-170 ~ 34-ZMAC70R-70AAV 69.8 85.2 190.0 CC08 High speeds / deep hole drilling
BT50-Q34-170 + ~ + 34-ZMAC70R-70V BT50 BT50-Q34-170 ~ 34-ZMAC70R-70V 69.8 85.2 190.0 CC08 Finishing
BT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70AAV BT50 BT50-Q34-170 SP34-34-60 34-ZMAC70-70AAV 69.8 85.2 250.0 6MP High speeds / deep hole drilling
BT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70V BT50 BT50-Q34-170 SP34-34-60 34-ZMAC70-70V 69.8 85.2 250.0 6MP Finishing
BT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70AAV BT50 BT50-Q34-170 SP34-34-60 34-ZMAC70R-70AAV 69.8 85.2 250.0 CC08 High speeds / deep hole drilling
BT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70V BT50 BT50-Q34-170 SP34-34-60 34-ZMAC70R-70V 69.8 85.2 250.0 CC08 Finishing
BT50-Q34-200 + ~ + 34-ZMAC70-70AAV BT50 BT50-Q34-200 ~ 34-ZMAC70-70AAV 69.8 85.2 220.0 6MP High speeds / deep hole drilling
BT50-Q34-200 + ~ + 34-ZMAC70-70V BT50 BT50-Q34-200 ~ 34-ZMAC70-70V 69.8 85.2 220.0 6MP Finishing
BT50-Q34-200 + ~ + 34-ZMAC70R-70AAV BT50 BT50-Q34-200 ~ 34-ZMAC70R-70AAV 69.8 85.2 220.0 CC08 High speeds / deep hole drilling
BT50-Q34-200 + ~ + 34-ZMAC70R-70V BT50 BT50-Q34-200 ~ 34-ZMAC70R-70V 69.8 85.2 220.0 CC08 Finishing
BT50-Q42-125 + ~ + 42-ZMAC100-100AAV BT50 BT50-Q42-125 ~ 42-ZMAC100-100AAV 99.5 140.5 225.0 6MP High speeds / deep hole drilling
BT50-Q42-125 + ~ + 42-ZMAC100-100V BT50 BT50-Q42-125 ~ 42-ZMAC100-100V 99.5 140.5 225.0 6MP Finishing
BT50-Q42-125 + ~ + 42-ZMAC100R-100AAV BT50 BT50-Q42-125 ~ 42-ZMAC100R-100AAV 99.5 140.5 225.0 CC12 High speeds / deep hole drilling
BT50-Q42-125 + ~ + 42-ZMAC100R-100V BT50 BT50-Q42-125 ~ 42-ZMAC100R-100V 99.5 140.5 225.0 CC12 Finishing
BT50-Q42-125 + ~ + 42-ZMAC140-100AAV BT50 BT50-Q42-125 ~ 42-ZMAC140-100AAV 139.5 180.5 225.0 6MP High speeds / deep hole drilling
BT50-Q42-125 + ~ + 42-ZMAC140-100V BT50 BT50-Q42-125 ~ 42-ZMAC140-100V 139.5 180.5 225.0 6MP Finishing
BT50-Q42-125 + ~ + 42-ZMAC140R-100AAV BT50 BT50-Q42-125 ~ 42-ZMAC140R-100AAV 139.5 180.5 225.0 CC12 High speeds / deep hole drilling
BT50-Q42-125 + ~ + 42-ZMAC140R-100V BT50 BT50-Q42-125 ~ 42-ZMAC140R-100V 139.5 180.5 225.0 CC12 Finishing
BT50-Q42-125 + ~ + 42-ZMAC85-100AAV BT50 BT50-Q42-125 ~ 42-ZMAC85-100AAV 84.8 100.2 182.0 6MP High speeds / deep hole drilling
BT50-Q42-125 + ~ + 42-ZMAC85-100V BT50 BT50-Q42-125 ~ 42-ZMAC85-100V 84.8 100.2 182.0 6MP Finishing
BT50-Q42-125 + ~ + 42-ZMAC85R-100AAV BT50 BT50-Q42-125 ~ 42-ZMAC85R-100AAV 84.8 100.2 182.0 CC08 High speeds / deep hole drilling
BT50-Q42-125 + ~ + 42-ZMAC85R-100V BT50 BT50-Q42-125 ~ 42-ZMAC85R-100V 84.8 100.2 182.0 CC08 Finishing
BT50-Q42-190 + ~ + 42-ZMAC100-100AAV BT50 BT50-Q42-190 ~ 42-ZMAC100-100AAV 99.5 140.5 290.0 6MP High speeds / deep hole drilling
BT50-Q42-190 + ~ + 42-ZMAC100-100V BT50 BT50-Q42-190 ~ 42-ZMAC100-100V 99.5 140.5 290.0 6MP Finishing
BT50-Q42-190 + ~ + 42-ZMAC100R-100AAV BT50 BT50-Q42-190 ~ 42-ZMAC100R-100AAV 99.5 140.5 290.0 CC12 High speeds / deep hole drilling
BT50-Q42-190 + ~ + 42-ZMAC100R-100V BT50 BT50-Q42-190 ~ 42-ZMAC100R-100V 99.5 140.5 290.0 CC12 Finishing
BT50-Q42-190 + ~ + 42-ZMAC140-100AAV BT50 BT50-Q42-190 ~ 42-ZMAC140-100AAV 139.5 180.5 290.0 6MP High speeds / deep hole drilling
BT50-Q42-190 + ~ + 42-ZMAC140-100V BT50 BT50-Q42-190 ~ 42-ZMAC140-100V 139.5 180.5 290.0 6MP Finishing
BT50-Q42-190 + ~ + 42-ZMAC140R-100AAV BT50 BT50-Q42-190 ~ 42-ZMAC140R-100AAV 139.5 180.5 290.0 CC12 High speeds / deep hole drilling
BT50-Q42-190 + ~ + 42-ZMAC140R-100V BT50 BT50-Q42-190 ~ 42-ZMAC140R-100V 139.5 180.5 290.0 CC12 Finishing
BT50-Q42-190 + ~ + 42-ZMAC85-100AAV BT50 BT50-Q42-190 ~ 42-ZMAC85-100AAV 84.8 100.2 247.0 6MP High speeds / deep hole drilling
BT50-Q42-190 + ~ + 42-ZMAC85-100V BT50 BT50-Q42-190 ~ 42-ZMAC85-100V 84.8 100.2 247.0 6MP Finishing
BT50-Q42-190 + ~ + 42-ZMAC85R-100AAV BT50 BT50-Q42-190 ~ 42-ZMAC85R-100AAV 84.8 100.2 247.0 CC08 High speeds / deep hole drilling
BT50-Q42-190 + ~ + 42-ZMAC85R-100V BT50 BT50-Q42-190 ~ 42-ZMAC85R-100V 84.8 100.2 247.0 CC08 Finishing
BT50-Q42-225A + ~ + 42-ZMAC100-100AAV BT50 BT50-Q42-225A ~ 42-ZMAC100-100AAV 99.5 140.5 325.0 6MP High speeds / deep hole drilling
BT50-Q42-225A + ~ + 42-ZMAC100-100V BT50 BT50-Q42-225A ~ 42-ZMAC100-100V 99.5 140.5 325.0 6MP Finishing
BT50-Q42-225A + ~ + 42-ZMAC100R-100AAV BT50 BT50-Q42-225A ~ 42-ZMAC100R-100AAV 99.5 140.5 325.0 CC12 High speeds / deep hole drilling
BT50-Q42-225A + ~ + 42-ZMAC100R-100V BT50 BT50-Q42-225A ~ 42-ZMAC100R-100V 99.5 140.5 325.0 CC12 Finishing
BT50-Q42-225A + ~ + 42-ZMAC140-100AAV BT50 BT50-Q42-225A ~ 42-ZMAC140-100AAV 139.5 180.5 325.0 6MP High speeds / deep hole drilling
BT50-Q42-225A + ~ + 42-ZMAC140-100V BT50 BT50-Q42-225A ~ 42-ZMAC140-100V 139.5 180.5 325.0 6MP Finishing
BT50-Q42-225A + ~ + 42-ZMAC140R-100AAV BT50 BT50-Q42-225A ~ 42-ZMAC140R-100AAV 139.5 180.5 325.0 CC12 High speeds / deep hole drilling
BT50-Q42-225A + ~ + 42-ZMAC140R-100V BT50 BT50-Q42-225A ~ 42-ZMAC140R-100V 139.5 180.5 325.0 CC12 Finishing
BT50-Q42-275A + ~ + 42-ZMAC100-100AAV BT50 BT50-Q42-275A ~ 42-ZMAC100-100AAV 99.5 140.5 375.0 6MP High speeds / deep hole drilling
BT50-Q42-275A + ~ + 42-ZMAC100-100V BT50 BT50-Q42-275A ~ 42-ZMAC100-100V 99.5 140.5 375.0 6MP Finishing
BT50-Q42-275A + ~ + 42-ZMAC100R-100AAV BT50 BT50-Q42-275A ~ 42-ZMAC100R-100AAV 99.5 140.5 375.0 CC12 High speeds / deep hole drilling
BT50-Q42-275A + ~ + 42-ZMAC100R-100V BT50 BT50-Q42-275A ~ 42-ZMAC100R-100V 99.5 140.5 375.0 CC12 Finishing
BT50-Q42-275A + ~ + 42-ZMAC140-100AAV BT50 BT50-Q42-275A ~ 42-ZMAC140-100AAV 139.5 180.5 375.0 6MP High speeds / deep hole drilling
BT50-Q42-275A + ~ + 42-ZMAC140-100V BT50 BT50-Q42-275A ~ 42-ZMAC140-100V 139.5 180.5 375.0 6MP Finishing
BT50-Q42-275A + ~ + 42-ZMAC140R-100AAV BT50 BT50-Q42-275A ~ 42-ZMAC140R-100AAV 139.5 180.5 375.0 CC12 High speeds / deep hole drilling
BT50-Q42-275A + ~ + 42-ZMAC140R-100V BT50 BT50-Q42-275A ~ 42-ZMAC140R-100V 139.5 180.5 375.0 CC12 Finishing
BT50-Q42-325A + ~ + 42-ZMAC100-100AAV BT50 BT50-Q42-325A ~ 42-ZMAC100-100AAV 99.5 140.5 425.0 6MP High speeds / deep hole drilling
BT50-Q42-325A + ~ + 42-ZMAC100-100V BT50 BT50-Q42-325A ~ 42-ZMAC100-100V 99.5 140.5 425.0 6MP Finishing
BT50-Q42-325A + ~ + 42-ZMAC100R-100AAV BT50 BT50-Q42-325A ~ 42-ZMAC100R-100AAV 99.5 140.5 425.0 CC12 High speeds / deep hole drilling
BT50-Q42-325A + ~ + 42-ZMAC100R-100V BT50 BT50-Q42-325A ~ 42-ZMAC100R-100V 99.5 140.5 425.0 CC12 Finishing
BT50-Q42-325A + ~ + 42-ZMAC140-100AAV BT50 BT50-Q42-325A ~ 42-ZMAC140-100AAV 139.5 180.5 425.0 6MP High speeds / deep hole drilling
BT50-Q42-325A + ~ + 42-ZMAC140-100V BT50 BT50-Q42-325A ~ 42-ZMAC140-100V 139.5 180.5 425.0 6MP Finishing
BT50-Q42-325A + ~ + 42-ZMAC140R-100AAV BT50 BT50-Q42-325A ~ 42-ZMAC140R-100AAV 139.5 180.5 425.0 CC12 High speeds / deep hole drilling
BT50-Q42-325A + ~ + 42-ZMAC140R-100V BT50 BT50-Q42-325A ~ 42-ZMAC140R-100V 139.5 180.5 425.0 CC12 Finishing
BT50-Q9-110 + ~ + 9-ZMAC20-40AAV BT50 BT50-Q9-110 ~ 9-ZMAC20-40AAV 19.8 25.2 45.0 3MP High speeds / deep hole drilling
BT50-Q9-110 + ~ + 9-ZMAC20-40V BT50 BT50-Q9-110 ~ 9-ZMAC20-40V 19.8 25.2 45.0 3MP Finishing
BT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40AAV BT50 BT50-Q9-110 SP9-9-30 9-ZMAC20-40AAV 19.8 25.2 75.0 3MP High speeds / deep hole drilling
BT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40V BT50 BT50-Q9-110 SP9-9-30 9-ZMAC20-40V 19.8 25.2 75.0 3MP Finishing
BT50-Q9-125N + ~ + 9-ZMAC20-40AAV BT50 BT50-Q9-125N ~ 9-ZMAC20-40AAV 19.8 25.2 67.0 3MP High speeds / deep hole drilling
BT50-Q9-125N + ~ + 9-ZMAC20-40V BT50 BT50-Q9-125N ~ 9-ZMAC20-40V 19.8 25.2 67.0 3MP Finishing
HSK100A-Q12-125 + ~ + 12-ZMAC25-40V HSK100A HSK100A-Q12-125 ~ 12-ZMAC25-40V 24.8 32.2 90.0 3MP Finishing
HSK100A-Q12-95 + ~ + 12-ZMAC16-45V HSK100A HSK100A-Q12-95 ~ 12-ZMAC16-45V 15.9 20.2 38.0 3MP Finishing
HSK100A-Q12-95 + ~ + 12-ZMAC16-55V HSK100A HSK100A-Q12-95 ~ 12-ZMAC16-55V 15.9 20.2 48.0 3MP Finishing
HSK100A-Q12-95 + ~ + 12-ZMAC25-40V HSK100A HSK100A-Q12-95 ~ 12-ZMAC25-40V 24.8 32.2 52.0 3MP Finishing
HSK100A-Q26-140 + SP26-26-60 + 26-ZMAC55-70V HSK100A HSK100A-Q26-140 SP26-26-60 26-ZMAC55-70V 54.8 70.2 177.0 6MP Finishing
HSK100A-Q26-170N + ~ + 26-ZMAC55-70V HSK100A HSK100A-Q26-170N ~ 26-ZMAC55-70V 54.8 70.2 182.0 6MP Finishing
HSK100A-Q34-170 + ~ + 34-ZMAC70-70V HSK100A HSK100A-Q34-170 ~ 34-ZMAC70-70V 69.8 85.2 190.0 6MP Finishing
HSK100A-Q34-200 + ~ + 34-ZMAC70-70V HSK100A HSK100A-Q34-200 ~ 34-ZMAC70-70V 69.8 85.2 220.0 6MP Finishing
HSK100A-Q9-110 + ~ + 9-ZMAC20-40V HSK100A HSK100A-Q9-110 ~ 9-ZMAC20-40V 19.8 25.2 45.0 3MP Finishing
HSK100A-Q9-110 + SP9-9-30 + 9-ZMAC20-40V HSK100A HSK100A-Q9-110 SP9-9-30 9-ZMAC20-40V 19.8 25.2 75.0 3MP Finishing
HSK100A-Q9-125N + ~ + 9-ZMAC20-40V HSK100A HSK100A-Q9-125N ~ 9-ZMAC20-40V 19.8 25.2 67.0 3MP Finishing
HSK63A-Q12-110 + ~ + 12-ZMAC25-40AAV HSK63A HSK63A-Q12-110 ~ 12-ZMAC25-40AAV 24.8 32.2 90.0 3MP High speeds / deep hole drilling
HSK63A-Q12-110 + ~ + 12-ZMAC25-40V HSK63A HSK63A-Q12-110 ~ 12-ZMAC25-40V 24.8 32.2 90.0 3MP Finishing
HSK63A-Q12-80 + ~ + 12-ZMAC16-45AAV HSK63A HSK63A-Q12-80 ~ 12-ZMAC16-45AAV 15.9 20.2 38.0 3MP High speeds / deep hole drilling
HSK63A-Q12-80 + ~ + 12-ZMAC16-45V HSK63A HSK63A-Q12-80 ~ 12-ZMAC16-45V 15.9 20.2 38.0 3MP Finishing
HSK63A-Q12-80 + ~ + 12-ZMAC16-55AAV HSK63A HSK63A-Q12-80 ~ 12-ZMAC16-55AAV 15.9 20.2 48.0 3MP High speeds / deep hole drilling
HSK63A-Q12-80 + ~ + 12-ZMAC16-55V HSK63A HSK63A-Q12-80 ~ 12-ZMAC16-55V 15.9 20.2 48.0 3MP Finishing
HSK63A-Q12-80 + ~ + 12-ZMAC25-40AAV HSK63A HSK63A-Q12-80 ~ 12-ZMAC25-40AAV 24.8 32.2 52.0 3MP High speeds / deep hole drilling
HSK63A-Q12-80 + ~ + 12-ZMAC25-40V HSK63A HSK63A-Q12-80 ~ 12-ZMAC25-40V 24.8 32.2 52.0 3MP Finishing
HSK63A-Q12-80 + SP12-12-45 + 12-ZMAC25-40AAV HSK63A HSK63A-Q12-80 SP12-12-45 12-ZMAC25-40AAV 24.8 32.2 97.0 3MP High speeds / deep hole drilling
HSK63A-Q12-80 + SP12-12-45 + 12-ZMAC25-40V HSK63A HSK63A-Q12-80 SP12-12-45 12-ZMAC25-40V 24.8 32.2 97.0 3MP Finishing
HSK63A-Q16-125 + ~ + 16-ZMAC32-55V HSK63A HSK63A-Q16-125 ~ 16-ZMAC32-55V 31.8 42.2 110.0 4MP Finishing
HSK63A-Q16-95 + ~ + 16-ZMAC32-55AAV HSK63A HSK63A-Q16-95 ~ 16-ZMAC32-55AAV 31.8 42.2 77.0 4MP High speeds / deep hole drilling
HSK63A-Q16-95 + ~ + 16-ZMAC32-55V HSK63A HSK63A-Q16-95 ~ 16-ZMAC32-55V 31.8 42.2 77.0 4MP Finishing
HSK63A-Q34-95 + SP34-34-95 + 34-ZMAC70-70AAV HSK63A HSK63A-Q34-95 SP34-34-95 34-ZMAC70-70AAV 69.8 85.2 225.0 6MP High speeds / deep hole drilling
HSK63A-Q34-95 + SP34-34-95 + 34-ZMAC70-70V HSK63A HSK63A-Q34-95 SP34-34-95 34-ZMAC70-70V 69.8 85.2 225.0 6MP Finishing
HSK63A-Q42-95 + ~ + 42-ZMAC85-100AAV HSK63A HSK63A-Q42-95 ~ 42-ZMAC85-100AAV 84.8 100.2 195.0 6MP High speeds / deep hole drilling
HSK63A-Q42-95 + ~ + 42-ZMAC85-100V HSK63A HSK63A-Q42-95 ~ 42-ZMAC85-100V 84.8 100.2 195.0 6MP Finishing
HSK63A-Q9-80 + ~ + 9-ZMAC20-40AAV HSK63A HSK63A-Q9-80 ~ 9-ZMAC20-40AAV 19.8 25.2 45.0 3MP High speeds / deep hole drilling
HSK63A-Q9-80 + ~ + 9-ZMAC20-40V HSK63A HSK63A-Q9-80 ~ 9-ZMAC20-40V 19.8 25.2 45.0 3MP Finishing
HSK63A-Q9-80 + SP9-9-30 + 9-ZMAC20-40AAV HSK63A HSK63A-Q9-80 SP9-9-30 9-ZMAC20-40AAV 19.8 25.2 75.0 3MP High speeds / deep hole drilling
HSK63A-Q9-80 + SP9-9-30 + 9-ZMAC20-40V HSK63A HSK63A-Q9-80 SP9-9-30 9-ZMAC20-40V 19.8 25.2 75.0 3MP Finishing
HSK63A-Q9-95N + ~ + 9-ZMAC20-40AAV HSK63A HSK63A-Q9-95N ~ 9-ZMAC20-40AAV 19.8 25.2 67.0 3MP High speeds / deep hole drilling
HSK63A-Q9-95N + ~ + 9-ZMAC20-40V HSK63A HSK63A-Q9-95N ~ 9-ZMAC20-40V 19.8 25.2 67.0 3MP Finishing
IT40-Q12-110 + ~ + 12-ZMAC25-40AAV IT40 IT40-Q12-110 ~ 12-ZMAC25-40AAV 24.8 32.2 90.0 3MP High speeds / deep hole drilling
IT40-Q12-110 + ~ + 12-ZMAC25-40V IT40 IT40-Q12-110 ~ 12-ZMAC25-40V 24.8 32.2 90.0 3MP Finishing
IT40-Q12-80 + ~ + 12-ZMAC16-45AAV IT40 IT40-Q12-80 ~ 12-ZMAC16-45AAV 15.9 20.2 38.0 3MP High speeds / deep hole drilling
IT40-Q12-80 + ~ + 12-ZMAC16-45V IT40 IT40-Q12-80 ~ 12-ZMAC16-45V 15.9 20.2 38.0 3MP Finishing
IT40-Q12-80 + ~ + 12-ZMAC16-55AAV IT40 IT40-Q12-80 ~ 12-ZMAC16-55AAV 15.9 20.2 48.0 3MP High speeds / deep hole drilling
IT40-Q12-80 + ~ + 12-ZMAC16-55V IT40 IT40-Q12-80 ~ 12-ZMAC16-55V 15.9 20.2 48.0 3MP Finishing
IT40-Q12-80 + ~ + 12-ZMAC25-40AAV IT40 IT40-Q12-80 ~ 12-ZMAC25-40AAV 24.8 32.2 52.0 3MP High speeds / deep hole drilling
IT40-Q12-80 + ~ + 12-ZMAC25-40V IT40 IT40-Q12-80 ~ 12-ZMAC25-40V 24.8 32.2 52.0 3MP Finishing
IT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40AAV IT40 IT40-Q12-80 SP12-12-45 12-ZMAC25-40AAV 24.8 32.2 97.0 3MP High speeds / deep hole drilling
IT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40V IT40 IT40-Q12-80 SP12-12-45 12-ZMAC25-40V 24.8 32.2 97.0 3MP Finishing
IT40-Q16-125 + ~ + 16-ZMAC32-55AAV IT40 IT40-Q16-125 ~ 16-ZMAC32-55AAV 31.8 42.2 110.0 4MP High speeds / deep hole drilling
IT40-Q16-125 + ~ + 16-ZMAC32-55V IT40 IT40-Q16-125 ~ 16-ZMAC32-55V 31.8 42.2 110.0 4MP Finishing
IT40-Q16-125 + ~ + 16-ZMAC32R-55AAV IT40 IT40-Q16-125 ~ 16-ZMAC32R-55AAV 31.8 42.2 110.0 CC06 High speeds / deep hole drilling
IT40-Q16-125 + ~ + 16-ZMAC32R-55V IT40 IT40-Q16-125 ~ 16-ZMAC32R-55V 31.8 42.2 110.0 CC06 Finishing
IT40-Q16-95 + ~ + 16-ZMAC32-55AAV IT40 IT40-Q16-95 ~ 16-ZMAC32-55AAV 31.8 42.2 77.0 4MP High speeds / deep hole drilling
IT40-Q16-95 + ~ + 16-ZMAC32-55V IT40 IT40-Q16-95 ~ 16-ZMAC32-55V 31.8 42.2 77.0 4MP Finishing
IT40-Q16-95 + ~ + 16-ZMAC32R-55AAV IT40 IT40-Q16-95 ~ 16-ZMAC32R-55AAV 31.8 42.2 77.0 CC06 High speeds / deep hole drilling
IT40-Q16-95 + ~ + 16-ZMAC32R-55V IT40 IT40-Q16-95 ~ 16-ZMAC32R-55V 31.8 42.2 77.0 CC06 Finishing
IT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55AAV IT40 IT40-Q16-95 SP16-16-45 16-ZMAC32-55AAV 31.8 42.2 122.0 4MP High speeds / deep hole drilling
IT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55V IT40 IT40-Q16-95 SP16-16-45 16-ZMAC32-55V 31.8 42.2 122.0 4MP Finishing
IT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55AAV IT40 IT40-Q16-95 SP16-16-45 16-ZMAC32R-55AAV 31.8 42.2 122.0 CC06 High speeds / deep hole drilling
IT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55V IT40 IT40-Q16-95 SP16-16-45 16-ZMAC32R-55V 31.8 42.2 122.0 CC06 Finishing
IT40-Q20-110 + ~ + 20-ZMAC42-70AAV IT40 IT40-Q20-110 ~ 20-ZMAC42-70AAV 41.8 55.2 130.0 6MP High speeds / deep hole drilling
IT40-Q20-110 + ~ + 20-ZMAC42-70V IT40 IT40-Q20-110 ~ 20-ZMAC42-70V 41.8 55.2 130.0 6MP Finishing
IT40-Q20-110 + ~ + 20-ZMAC42R-70AAV IT40 IT40-Q20-110 ~ 20-ZMAC42R-70AAV 41.8 55.2 130.0 CC06 High speeds / deep hole drilling
IT40-Q20-110 + ~ + 20-ZMAC42R-70V IT40 IT40-Q20-110 ~ 20-ZMAC42R-70V 41.8 55.2 130.0 CC06 Finishing
IT40-Q20-80 + ~ + 20-ZMAC42-70AAV IT40 IT40-Q20-80 ~ 20-ZMAC42-70AAV 41.8 55.2 97.0 6MP High speeds / deep hole drilling
IT40-Q20-80 + ~ + 20-ZMAC42-70V IT40 IT40-Q20-80 ~ 20-ZMAC42-70V 41.8 55.2 97.0 6MP Finishing
IT40-Q20-80 + ~ + 20-ZMAC42R-70AAV IT40 IT40-Q20-80 ~ 20-ZMAC42R-70AAV 41.8 55.2 97.0 CC06 High speeds / deep hole drilling
IT40-Q20-80 + ~ + 20-ZMAC42R-70V IT40 IT40-Q20-80 ~ 20-ZMAC42R-70V 41.8 55.2 97.0 CC06 Finishing
IT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70AAV IT40 IT40-Q20-80 SP20-20-60 20-ZMAC42-70AAV 41.8 55.2 157.0 6MP High speeds / deep hole drilling
IT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70V IT40 IT40-Q20-80 SP20-20-60 20-ZMAC42-70V 41.8 55.2 157.0 6MP Finishing
IT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70AAV IT40 IT40-Q20-80 SP20-20-60 20-ZMAC42R-70AAV 41.8 55.2 157.0 CC06 High speeds / deep hole drilling
IT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70V IT40 IT40-Q20-80 SP20-20-60 20-ZMAC42R-70V 41.8 55.2 157.0 CC06 Finishing
IT40-Q26-140 + ~ + 26-ZMAC55-70AAV IT40 IT40-Q26-140 ~ 26-ZMAC55-70AAV 54.8 70.2 180.0 6MP High speeds / deep hole drilling
IT40-Q26-140 + ~ + 26-ZMAC55-70V IT40 IT40-Q26-140 ~ 26-ZMAC55-70V 54.8 70.2 180.0 6MP Finishing
IT40-Q26-140 + ~ + 26-ZMAC55R-70AAV IT40 IT40-Q26-140 ~ 26-ZMAC55R-70AAV 54.8 70.2 180.0 CC06 High speeds / deep hole drilling
IT40-Q26-140 + ~ + 26-ZMAC55R-70V IT40 IT40-Q26-140 ~ 26-ZMAC55R-70V 54.8 70.2 180.0 CC06 Finishing
IT40-Q26-95 + ~ + 26-ZMAC55-70AAV IT40 IT40-Q26-95 ~ 26-ZMAC55-70AAV 54.8 70.2 135.0 6MP High speeds / deep hole drilling
IT40-Q26-95 + ~ + 26-ZMAC55-70V IT40 IT40-Q26-95 ~ 26-ZMAC55-70V 54.8 70.2 135.0 6MP Finishing
IT40-Q26-95 + ~ + 26-ZMAC55R-70AAV IT40 IT40-Q26-95 ~ 26-ZMAC55R-70AAV 54.8 70.2 135.0 CC06 High speeds / deep hole drilling
IT40-Q26-95 + ~ + 26-ZMAC55R-70V IT40 IT40-Q26-95 ~ 26-ZMAC55R-70V 54.8 70.2 135.0 CC06 Finishing
IT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70AAV IT40 IT40-Q26-95 SP26-26-60 26-ZMAC55-70AAV 54.8 70.2 195.0 6MP High speeds / deep hole drilling
IT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70V IT40 IT40-Q26-95 SP26-26-60 26-ZMAC55-70V 54.8 70.2 195.0 6MP Finishing
IT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70AAV IT40 IT40-Q26-95 SP26-26-60 26-ZMAC55R-70AAV 54.8 70.2 195.0 CC06 High speeds / deep hole drilling
IT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70V IT40 IT40-Q26-95 SP26-26-60 26-ZMAC55R-70V 54.8 70.2 195.0 CC06 Finishing
IT40-Q34-110 + ~ + 34-ZMAC70-70AAV IT40 IT40-Q34-110 ~ 34-ZMAC70-70AAV 69.8 85.2 180.0 6MP High speeds / deep hole drilling
IT40-Q34-110 + ~ + 34-ZMAC70-70V IT40 IT40-Q34-110 ~ 34-ZMAC70-70V 69.8 85.2 180.0 6MP Finishing
IT40-Q34-110 + ~ + 34-ZMAC70R-70AAV IT40 IT40-Q34-110 ~ 34-ZMAC70R-70AAV 69.8 85.2 180.0 CC08 High speeds / deep hole drilling
IT40-Q34-110 + ~ + 34-ZMAC70R-70V IT40 IT40-Q34-110 ~ 34-ZMAC70R-70V 69.8 85.2 180.0 CC08 High speeds / deep hole drilling
IT40-Q34-95 + ~ + 34-ZMAC70-70AAV IT40 IT40-Q34-95 ~ 34-ZMAC70-70AAV 69.8 85.2 165.0 6MP High speeds / deep hole drilling
IT40-Q34-95 + ~ + 34-ZMAC70-70V IT40 IT40-Q34-95 ~ 34-ZMAC70-70V 69.8 85.2 165.0 6MP Finishing
IT40-Q34-95 + ~ + 34-ZMAC70R-70AAV IT40 IT40-Q34-95 ~ 34-ZMAC70R-70AAV 69.8 85.2 165.0 CC08 High speeds / deep hole drilling
IT40-Q34-95 + ~ + 34-ZMAC70R-70V IT40 IT40-Q34-95 ~ 34-ZMAC70R-70V 69.8 85.2 165.0 CC08 Finishing
IT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70AAV IT40 IT40-Q34-95 SP34-34-95 34-ZMAC70-70AAV 69.8 85.2 225.0 6MP High speeds / deep hole drilling
IT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70V IT40 IT40-Q34-95 SP34-34-95 34-ZMAC70-70V 69.8 85.2 225.0 6MP Finishing
IT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70AAV IT40 IT40-Q34-95 SP34-34-95 34-ZMAC70R-70AAV 69.8 85.2 225.0 CC08 High speeds / deep hole drilling
IT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70V IT40 IT40-Q34-95 SP34-34-95 34-ZMAC70R-70V 69.8 85.2 225.0 CC08 Finishing
IT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100AAV IT50 IT40-Q42-125 SP42-42-90 42-ZMAC85-100AAV 84.8 100.2 272.0 6MP High speeds / deep hole drilling
IT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100V IT40 IT40-Q42-125 SP42-42-90 42-ZMAC85-100V 84.8 100.2 272.0 6MP Finishing
IT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100AAV IT40 IT40-Q42-125 SP42-42-90 42-ZMAC85R-100AAV 84.8 100.2 272.0 CC08 High speeds / deep hole drilling
IT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100V IT40 IT40-Q42-125 SP42-42-90 42-ZMAC85R-100V 84.8 100.2 272.0 CC08 Finishing
IT40-Q42-95 + ~ + 42-ZMAC85-100AAV IT40 IT40-Q42-95 ~ 42-ZMAC85-100AAV 84.8 100.2 195.0 6MP High speeds / deep hole drilling
IT40-Q42-95 + ~ + 42-ZMAC85-100V IT40 IT40-Q42-95 ~ 42-ZMAC85-100V 84.8 100.2 195.0 6MP Finishing
IT40-Q42-95 + ~ + 42-ZMAC85R-100AAV IT40 IT40-Q42-95 ~ 42-ZMAC85R-100AAV 84.8 100.2 195.0 CC08 High speeds / deep hole drilling
IT40-Q9-80 + ~ + 9-ZMAC20-40AAV IT40 IT40-Q9-80 ~ 9-ZMAC20-40AAV 19.8 25.2 45.0 3MP High speeds / deep hole drilling
IT40-Q9-80 + ~ + 9-ZMAC20-40V IT40 IT40-Q9-80 ~ 9-ZMAC20-40V 19.8 25.2 45.0 3MP Finishing
IT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40AAV IT40 IT40-Q9-80 SP9-9-30 9-ZMAC20-40AAV 19.8 25.2 75.0 3MP High speeds / deep hole drilling
IT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40V IT40 IT40-Q9-80 SP9-9-30 9-ZMAC20-40V 19.8 25.2 75.0 3MP Finishing
IT40-Q9-95N + ~ + 9-ZMAC20-40AAV IT40 IT40-Q9-95N ~ 9-ZMAC20-40AAV 19.8 25.2 67.0 3MP High speeds / deep hole drilling
IT40-Q9-95N + ~ + 9-ZMAC20-40V IT40 IT40-Q9-95N ~ 9-ZMAC20-40V 19.8 25.2 67.0 3MP Finishing
IT50-Q12-125 + ~ + 12-ZMAC25-40AAV IT50 IT50-Q12-125 ~ 12-ZMAC25-40AAV 24.8 32.2 90.0 3MP High speeds / deep hole drilling
IT50-Q12-125 + ~ + 12-ZMAC25-40V IT50 IT50-Q12-125 IT50-Q12-125 12-ZMAC25-40V 24.8 32.2 90.0 3MP Finishing
IT50-Q12-95 + ~ + 12-ZMAC16-45AAV IT50 IT50-Q12-95 ~ 12-ZMAC16-45AAV 15.9 20.2 38.0 3MP High speeds / deep hole drilling
IT50-Q12-95 + ~ + 12-ZMAC16-45V IT50 IT50-Q12-95 ~ 12-ZMAC16-45V 15.9 20.2 38.0 3MP Finishing
IT50-Q12-95 + ~ + 12-ZMAC16-55AAV IT50 IT50-Q12-95 ~ 12-ZMAC16-55AAV 15.9 20.2 48.0 3MP High speeds / deep hole drilling
IT50-Q12-95 + ~ + 12-ZMAC16-55V IT50 IT50-Q12-95 ~ 12-ZMAC16-55V 15.9 20.2 48.0 3MP Finishing
IT50-Q12-95 + ~ + 12-ZMAC25-40AAV IT50 IT50-Q12-95 ~ 12-ZMAC25-40AAV 24.8 32.2 52.0 3MP High speeds / deep hole drilling
IT50-Q12-95 + ~ + 12-ZMAC25-40V IT50 IT50-Q12-95 ~ 12-ZMAC25-40V 24.8 32.2 52.0 3MP Finishing
IT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40AAV IT50 IT50-Q12-95 SP12-12-45 12-ZMAC25-40AAV 24.8 32.2 97.0 3MP High speeds / deep hole drilling
IT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40V IT50 IT50-Q12-95 SP12-12-45 12-ZMAC25-40V 24.8 32.2 97.0 3MP Finishing
IT50-Q16-125N + ~ + 16-ZMAC32-55AAV IT50 IT50-Q16-125N ~ 16-ZMAC32-55AAV 31.8 42.2 77.0 4MP High speeds / deep hole drilling
IT50-Q16-125N + ~ + 16-ZMAC32-55V IT50 IT50-Q16-125N ~ 16-ZMAC32-55V 31.8 42.2 77.0 4MP Finishing
IT50-Q16-125N + ~ + 16-ZMAC32R-55AAV IT50 IT50-Q16-125N ~ 16-ZMAC32R-55AAV 31.8 42.2 77.0 CC06 High speeds / deep hole drilling
IT50-Q16-125N + ~ + 16-ZMAC32R-55V IT50 IT50-Q16-125N ~ 16-ZMAC32R-55V 31.8 42.2 77.0 CC06 Finishing
IT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55AAV IT50 IT50-Q16-125N SP16-16-45 16-ZMAC32-55AAV 31.8 42.2 122.0 4MP High speeds / deep hole drilling
IT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55V IT50 IT50-Q16-125N SP16-16-45 16-ZMAC32-55V 31.8 42.2 122.0 4MP Finishing
IT50-Q16-125N + SP16-16-45 + 16-ZMAC32R-55V IT50 IT50-Q16-125N SP16-16-45 16-ZMAC32R-55V 31.8 42.2 122.0 CC06 Finishing
IT50-Q16-155 + ~ + 16-ZMAC32-55AAV IT50 IT50-Q16-155 ~ 16-ZMAC32-55AAV 31.8 42.2 110.0 4MP High speeds / deep hole drilling
IT50-Q16-155 + ~ + 16-ZMAC32-55V IT50 IT50-Q16-155 ~ 16-ZMAC32-55V 31.8 42.2 110.0 4MP Finishing
IT50-Q16-155 + ~ + 16-ZMAC32R-55AAV IT50 IT50-Q16-155 ~ 16-ZMAC32R-55AAV 31.8 42.2 110.0 CC06 High speeds / deep hole drilling
IT50-Q16-155 + ~ + 16-ZMAC32R-55V IT50 IT50-Q16-155 ~ 16-ZMAC32R-55V 31.8 42.2 110.0 CC06 Finishing
IT50-Q20-110 + ~ + 20-ZMAC42-70AAV IT50 IT50-Q20-110 ~ 20-ZMAC42-70AAV 41.8 55.2 97.0 6MP High speeds / deep hole drilling
IT50-Q20-110 + ~ + 20-ZMAC42-70V IT50 IT50-Q20-110 ~ 20-ZMAC42-70V 41.8 55.2 97.0 6MP Finishing
IT50-Q20-110 + ~ + 20-ZMAC42R-70V IT50 IT50-Q20-110 ~ 20-ZMAC42R-70V 41.8 55.2 97.0 CC06 Finishing
IT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70AAV IT50 IT50-Q20-110 SP20-20-45 20-ZMAC42-70AAV 41.8 55.2 142.0 6MP High speeds / deep hole drilling
IT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70V IT50 IT50-Q20-110 SP20-20-45 20-ZMAC42-70V 41.8 55.2 142.0 6MP Finishing
IT50-Q20-110 + SP20-20-45 + 20-ZMAC42R-70V IT50 IT50-Q20-110 SP20-20-45 20-ZMAC42R-70V 41.8 55.2 142.0 CC06 Finishing
IT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70AAV IT50 IT50-Q20-110 SP20-20-60 20-ZMAC42-70AAV 41.8 55.2 157.0 6MP High speeds / deep hole drilling
IT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70V IT50 IT50-Q20-110 SP20-20-60 20-ZMAC42-70V 41.8 55.2 157.0 6MP Finishing
IT50-Q20-110 + SP20-20-60 + 20-ZMAC42R-70V IT50 IT50-Q20-110 SP20-20-60 20-ZMAC42R-70V 41.8 55.2 157.0 CC06 Finishing
IT50-Q20-125 + ~ + 20-ZMAC42-70AAV IT50 IT50-Q20-125 ~ 20-ZMAC42-70AAV 41.8 55.2 130.0 6MP High speeds / deep hole drilling
IT50-Q20-125 + ~ + 20-ZMAC42-70V IT50 IT50-Q20-125 ~ 20-ZMAC42-70V 41.8 55.2 130.0 6MP Finishing
IT50-Q20-125 + ~ + 20-ZMAC42R-70V IT50 IT50-Q20-125 ~ 20-ZMAC42R-70V 41.8 55.2 130.0 CC06 Finishing
IT50-Q26-140 + ~ + 26-ZMAC55-70AAV IT50 IT50-Q26-140 ~ 26-ZMAC55-70AAV 54.8 70.2 117.0 6MP High speeds / deep hole drilling
IT50-Q26-140 + ~ + 26-ZMAC55-70V IT50 IT50-Q26-140 ~ 26-ZMAC55-70V 54.8 70.2 117.0 6MP Finishing
IT50-Q26-140 + ~ + 26-ZMAC55R-70V IT50 IT50-Q26-140 ~ 26-ZMAC55R-70V 54.8 70.2 117.0 CC06 Finishing
IT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70AAV IT50 IT50-Q26-140 SP26-26-60 26-ZMAC55-70AAV 54.8 70.2 177.0 6MP High speeds / deep hole drilling
IT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70V IT50 IT50-Q26-140 SP26-26-60 26-ZMAC55-70V 54.8 70.2 177.0 6MP Finishing
IT50-Q26-140 + SP26-26-60 + 26-ZMAC55R-70V IT50 IT50-Q26-140 SP26-26-60 26-ZMAC55R-70V 54.8 70.2 177.0 CC06 Finishing
IT50-Q26-170N + ~ + 26-ZMAC55-70AAV IT50 IT50-Q26-170N ~ 26-ZMAC55-70AAV 54.8 70.2 182.0 6MP High speeds / deep hole drilling
IT50-Q26-170N + ~ + 26-ZMAC55-70V IT50 IT50-Q26-170N ~ 26-ZMAC55-70V 54.8 70.2 182.0 6MP Finishing
IT50-Q26-170N + ~ + 26-ZMAC55R-70V IT50 IT50-Q26-170N ~ 26-ZMAC55R-70V 54.8 70.2 182.0 CC06 Finishing
IT50-Q34-170 + ~ + 34-ZMAC70-70AAV IT50 IT50-Q34-170 ~ 34-ZMAC70-70AAV 69.8 85.2 190.0 6MP High speeds / deep hole drilling
IT50-Q34-170 + ~ + 34-ZMAC70-70V IT50 IT50-Q34-170 ~ 34-ZMAC70-70V 69.8 85.2 190.0 6MP Finishing
IT50-Q34-170 + ~ + 34-ZMAC70R-70V IT50 IT50-Q34-170 ~ 34-ZMAC70R-70V 69.8 85.2 190.0 CC08 Finishing
IT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70AAV IT50 IT50-Q34-170 SP34-34-60 34-ZMAC70-70AAV 69.8 85.2 250.0 6MP High speeds / deep hole drilling
IT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70V IT50 IT50-Q34-170 SP34-34-60 34-ZMAC70-70V 69.8 85.2 250.0 6MP Finishing
IT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70AAV IT50 IT50-Q34-170 SP34-34-60 34-ZMAC70R-70AAV 69.8 85.2 250.0 CC08 High speeds / deep hole drilling
IT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70V IT50 IT50-Q34-170 SP34-34-60 34-ZMAC70R-70V 69.8 85.2 250.0 CC08 Finishing
IT50-Q34-200 + ~ + 34-ZMAC70-70AAV IT50 IT50-Q34-200 ~ 34-ZMAC70-70AAV 69.8 85.2 220.0 6MP High speeds / deep hole drilling
IT50-Q34-200 + ~ + 34-ZMAC70-70V IT50 IT50-Q34-200 ~ 34-ZMAC70-70V 69.8 85.2 220.0 6MP Finishing
IT50-Q34-200 + ~ + 34-ZMAC70R-70AAV IT50 IT50-Q34-200 ~ 34-ZMAC70R-70AAV 69.8 85.2 220.0 CC08 High speeds / deep hole drilling
IT50-Q34-200 + ~ + 34-ZMAC70R-70V IT50 IT50-Q34-200 ~ 34-ZMAC70R-70V 69.8 85.2 220.0 CC08 Finishing
IT50-Q42-125 + ~ + 42-ZMAC100-100AAV IT50 IT50-Q42-125 ~ 42-ZMAC100-100AAV 99.5 140.5 225.0 6MP High speeds / deep hole drilling
IT50-Q42-125 + ~ + 42-ZMAC100-100V IT50 IT50-Q42-125 ~ 42-ZMAC100-100V 99.5 140.5 225.0 6MP Finishing
IT50-Q42-125 + ~ + 42-ZMAC100R-100AAV IT50 IT50-Q42-125 ~ 42-ZMAC100R-100AAV 99.5 140.5 225.0 CC12 High speeds / deep hole drilling
IT50-Q42-125 + ~ + 42-ZMAC100R-100V IT50 IT50-Q42-125 ~ 42-ZMAC100R-100V 99.5 140.5 225.0 CC12 Finishing
IT50-Q42-125 + ~ + 42-ZMAC140-100AAV IT50 IT50-Q42-125 ~ 42-ZMAC140-100AAV 139.5 180.5 225.0 6MP High speeds / deep hole drilling
IT50-Q42-125 + ~ + 42-ZMAC140-100V IT50 IT50-Q42-125 ~ 42-ZMAC140-100V 139.5 180.5 225.0 6MP Finishing
IT50-Q42-125 + ~ + 42-ZMAC140R-100AAV IT50 IT50-Q42-125 ~ 42-ZMAC140R-100AAV 139.5 180.5 225.0 CC12 High speeds / deep hole drilling
IT50-Q42-125 + ~ + 42-ZMAC140R-100V IT50 IT50-Q42-125 ~ 42-ZMAC140R-100V 139.5 180.5 225.0 CC12 Finishing
IT50-Q42-125 + ~ + 42-ZMAC85-100AAV IT50 IT50-Q42-125 ~ 42-ZMAC85-100AAV 84.8 100.2 182.0 6MP High speeds / deep hole drilling
IT50-Q42-125 + ~ + 42-ZMAC85-100V IT50 IT50-Q42-125 ~ 42-ZMAC85-100V 84.8 100.2 182.0 6MP Finishing
IT50-Q42-125 + ~ + 42-ZMAC85R-100AAV IT50 IT50-Q42-125 ~ 42-ZMAC85R-100AAV 84.8 100.2 182.0 CC08 High speeds / deep hole drilling
IT50-Q42-125 + ~ + 42-ZMAC85R-100V IT50 IT50-Q42-125 ~ 42-ZMAC85R-100V 84.8 100.2 182.0 CC08 Finishing
IT50-Q42-190 + ~ + 42-ZMAC100-100AAV IT50 IT50-Q42-190 ~ 42-ZMAC100-100AAV 99.5 140.5 290.0 6MP High speeds / deep hole drilling
IT50-Q42-190 + ~ + 42-ZMAC100-100V IT50 IT50-Q42-190 ~ 42-ZMAC100-100V 99.5 140.5 290.0 6MP Finishing
IT50-Q42-190 + ~ + 42-ZMAC100R-100AAV IT50 IT50-Q42-190 ~ 42-ZMAC100R-100AAV 99.5 140.5 290.0 CC12 High speeds / deep hole drilling
IT50-Q42-190 + ~ + 42-ZMAC100R-100V IT50 IT50-Q42-190 ~ 42-ZMAC100R-100V 99.5 140.5 290.0 CC12 Finishing
IT50-Q42-190 + ~ + 42-ZMAC140-100AAV IT50 IT50-Q42-190 ~ 42-ZMAC140-100AAV 139.5 180.5 290.0 6MP High speeds / deep hole drilling
IT50-Q42-190 + ~ + 42-ZMAC140-100V IT50 IT50-Q42-190 ~ 42-ZMAC140-100V 139.5 180.5 290.0 6MP Finishing
IT50-Q42-190 + ~ + 42-ZMAC140R-100AAV IT50 IT50-Q42-190 ~ 42-ZMAC140R-100AAV 139.5 180.5 290.0 CC12 High speeds / deep hole drilling
IT50-Q42-190 + ~ + 42-ZMAC85-100AAV IT50 IT50-Q42-190 ~ 42-ZMAC85-100AAV 84.8 100.2 247.0 6MP High speeds / deep hole drilling
IT50-Q42-190 + ~ + 42-ZMAC85-100V IT50 IT50-Q42-190 ~ 42-ZMAC85-100V 84.8 100.2 247.0 6MP Finishing
IT50-Q42-190 + ~ + 42-ZMAC85R-100AAV IT50 IT50-Q42-190 ~ 42-ZMAC85R-100AAV 84.8 100.2 247.0 CC08 High speeds / deep hole drilling
IT50-Q42-190 + ~ + 42-ZMAC85R-100V IT50 IT50-Q42-190 ~ 42-ZMAC85R-100V 84.8 100.2 247.0 CC08 Finishing
IT50-Q42-225A + ~ + 42-ZMAC100-100AAV IT50 IT50-Q42-225A ~ 42-ZMAC100-100AAV 99.5 140.5 325.0 6MP High speeds / deep hole drilling
IT50-Q42-225A + ~ + 42-ZMAC100-100V IT50 IT50-Q42-225A ~ 42-ZMAC100-100V 99.5 140.5 325.0 6MP Finishing
IT50-Q42-225A + ~ + 42-ZMAC100R-100V IT50 IT50-Q42-225A ~ 42-ZMAC100R-100V 99.5 140.5 325.0 CC12 Finishing
IT50-Q42-225A + ~ + 42-ZMAC140-100AAV IT50 IT50-Q42-225A ~ 42-ZMAC140-100AAV 139.5 180.5 325.0 6MP High speeds / deep hole drilling
IT50-Q42-225A + ~ + 42-ZMAC140-100V IT50 IT50-Q42-225A ~ 42-ZMAC140-100V 139.5 180.5 325.0 6MP Finishing
IT50-Q42-225A + ~ + 42-ZMAC140R-100AAV IT50 IT50-Q42-225A ~ 42-ZMAC140R-100AAV 139.5 180.5 325.0 CC12 High speeds / deep hole drilling
IT50-Q42-275A + ~ + 42-ZMAC100-100AAV IT50 IT50-Q42-275A ~ 42-ZMAC100-100AAV 99.5 140.5 375.0 6MP High speeds / deep hole drilling
IT50-Q42-275A + ~ + 42-ZMAC100-100V IT50 IT50-Q42-275A ~ 42-ZMAC100-100V 99.5 140.5 375.0 6MP Schlichten
IT50-Q42-275A + ~ + 42-ZMAC100R-100AAV IT50 IT50-Q42-275A ~ 42-ZMAC100R-100AAV 99.5 140.5 375.0 CC12 High speeds / deep hole drilling
IT50-Q42-275A + ~ + 42-ZMAC100R-100V IT50 IT50-Q42-275A ~ 42-ZMAC100R-100V 99.5 140.5 375.0 CC12 Finishing
IT50-Q42-275A + ~ + 42-ZMAC140-100AAV IT50 IT50-Q42-275A ~ 42-ZMAC140-100AAV 139.5 180.5 375.0 6MP High speeds / deep hole drilling
IT50-Q42-275A + ~ + 42-ZMAC140-100V IT50 IT50-Q42-275A ~ 42-ZMAC140-100V 139.5 180.5 375.0 6MP Finishing
IT50-Q42-275A + ~ + 42-ZMAC140R-100AAV IT50 IT50-Q42-275A ~ 42-ZMAC140R-100AAV 139.5 180.5 375.0 CC12 High speeds / deep hole drilling
IT50-Q42-325A + ~ + 42-ZMAC100-100AAV IT50 IT50-Q42-325A ~ 42-ZMAC100-100AAV 99.5 140.5 425.0 6MP High speeds / deep hole drilling
IT50-Q42-325A + ~ + 42-ZMAC100-100V IT50 IT50-Q42-325A ~ 42-ZMAC100-100V 99.5 140.5 425.0 6MP Finishing
IT50-Q42-325A + ~ + 42-ZMAC100R-100V IT50 IT50-Q42-325A ~ 42-ZMAC100R-100V 99.5 140.5 425.0 CC12 Finishing
IT50-Q42-325A + ~ + 42-ZMAC140-100AAV IT50 IT50-Q42-325A ~ 42-ZMAC140-100AAV 139.5 180.5 425.0 6MP High speeds / deep hole drilling
IT50-Q42-325A + ~ + 42-ZMAC140-100V IT50 IT50-Q42-325A ~ 42-ZMAC140-100V 139.5 180.5 425.0 6MP Finishing
IT50-Q42-325A + ~ + 42-ZMAC140R-100AAV IT50 IT50-Q42-325A ~ 42-ZMAC140R-100AAV 139.5 180.5 425.0 CC12 High speeds / deep hole drilling
IT50-Q9-110 + ~ + 9-ZMAC20-40AAV IT50 IT50-Q9-110 ~ 9-ZMAC20-40AAV 19.8 25.2 45.0 3MP High speeds / deep hole drilling
IT50-Q9-110 + ~ + 9-ZMAC20-40V IT50 IT50-Q9-110 ~ 9-ZMAC20-40V 19.8 25.2 45.0 3MP Finishing
IT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40AAV IT50 IT50-Q9-110 SP9-9-30 9-ZMAC20-40AAV 19.8 25.2 75.0 3MP High speeds / deep hole drilling
IT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40V IT50 IT50-Q9-110 SP9-9-30 9-ZMAC20-40V 19.8 25.2 75.0 3MP Finishing
IT50-Q9-125N + ~ + 9-ZMAC20-40AAV IT50 IT50-Q9-125N ~ 9-ZMAC20-40AAV 19.8 25.2 67.0 3MP High speeds / deep hole drilling
IT50-Q9-125N + ~ + 9-ZMAC20-40V IT50 IT50-Q9-125N ~ 9-ZMAC20-40V 19.8 25.2 67.0 3MP Finishing
